Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Giriş Modu: | 3 Fazlı, 4 Telli+GND | Nominal Voltaj: | 380/400/415VAC |
|---|---|---|---|
| Voltaj aralığı: | 208-478VAC | Frekans aralığı: | 5-55Hz@50Hz;54-66Hz @60Hz(Kendinden uyarlamalı) |
| Güç faktörü: | ≥0,99 | Giriş akımı harmoniği: | ≤%3(%100 doğrusal olmayan yük) |

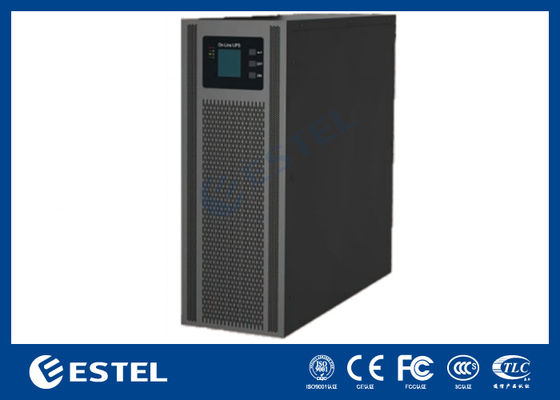

| Vurgulamak: | 60-80KVA UPS telecom power system,UPS for computer equipment,telecom power system for communication systems |
||
| UPS Capacity | 60KL | 80KL | |
| Rated Output Capacity | 60kVA | 80kVA | |
|
AC Input |
Input Mode | 3-Phase,4-Wire+GND | |
| Rated Voltage | 380/400/415VAC | ||
| Voltage Range | 208-478VAC | ||
| Frequency Range | 45-55Hz @50Hz;54-66Hz @60Hz(Self-adaptive) | ||
| Power Factor | ≥0.99 | ||
| Input curent harmonic | ≤3%(100%non-linear load) | ||
|
AC Output |
Output Mode | 3-Phase,4-Wire+GND | |
| Rated Voltage | 380/400/415VAC | ||
| Power Factor | 0.9or0.8 | ||
| Voltage Accuracy | ±1% | ||
| Output Frequency |
Synchronize with input; When mains frequency out of+10%(can be set to +1%, ±2%,±4%,and±5%) of maximum value, output frequency is 50Hz/60Hz±0.2%;
|
||
| Peak Load Ratio | Max.3:1 | ||
| Output THD | ≤2%@100%linear load;≤5%@100%non-linear load; | ||
| Efficiency | Normal Mode | ≥94.5% | |
| Battery | Battery Voltage | ±192VDC to±240VDC(Optional) | |
| Charging Current | 20A max | ||
| Switch Time |
Switch from mains mode to bypass mode:0ms (tracking); Switch from mains mode to battery mode:0ms; |
||
|
Protection |
Overload Capability |
Load ≤110%,60min;≤125%,maintain 10min;≤150%, maintain 1min;≥150%,switch to bypass immediately;
|
|
| Over Temperature Protection |
Normal mode:Switch to bypass mode; Battery mode:Turn offoutput immediately; |
||
| Emergency Power Off(EPO) | Turn off output immediately | ||
| Communication |
USB,RS485,Dry contacts,Parallel connection(optional), SNMP card(optional),Relay card(optional) |
||
|
Working Environment |
Working Temperature | 0℃ to 40℃ | |
| Relative Humidity | 0-95%(Non condensation) | ||
| Storage Temperature | -25℃ to 55℃ | ||
| Elevation | <1500m,when used in area higherthan 1500m,derate for use in acording t GB/T3859.2 | ||
| Physical Feature |
Size(D×W×H)(mm) | 700×300×960 | |
| Weight (kg) | 85 | 86 | |
