ESTEL DJM12200 12V 200Ah High Capacity Lead Acid Battery Industrial Grade Power Solution for Telecom and Energy Storage Systems

ESTEL DJM12200 12V 200Ah High Capacity Lead Acid Battery Industrial Grade Power Solution for Telecom and Energy Storage Systems
ESTEL DJM12200 12V 200Ah High Capacity Lead Acid Battery Industrial Grade Power Solution for Telecom and Energy Storage Systems ESTEL DJM12200 12V 200Ah High Capacity Lead Acid Battery Industrial Grade Power Solution for Telecom and Energy Storage Systems ESTEL DJM12200 12V 200Ah High Capacity Lead Acid Battery Industrial Grade Power Solution for Telecom and Energy Storage Systems ESTEL DJM12200 12V 200Ah High Capacity Lead Acid Battery Industrial Grade Power Solution for Telecom and Energy Storage Systems ESTEL DJM12200 12V 200Ah High Capacity Lead Acid Battery Industrial Grade Power Solution for Telecom and Energy Storage Systems ESTEL DJM12200 12V 200Ah High Capacity Lead Acid Battery Industrial Grade Power Solution for Telecom and Energy Storage Systems

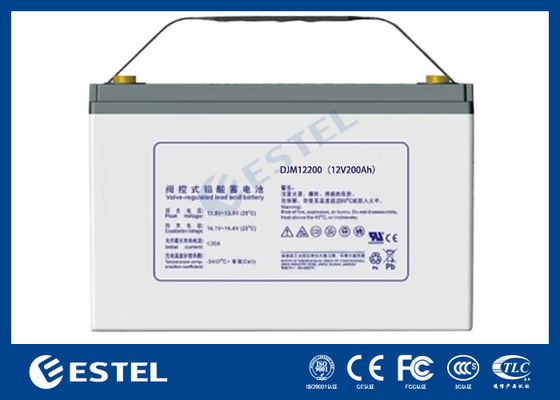

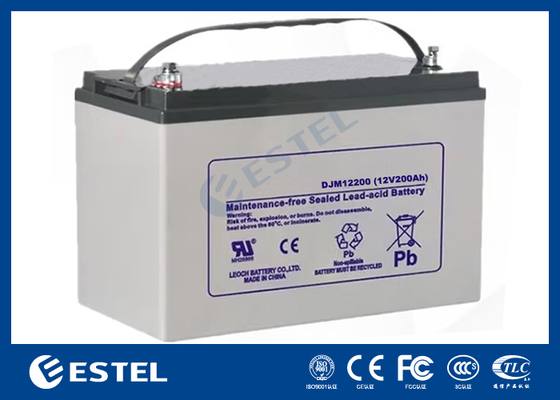

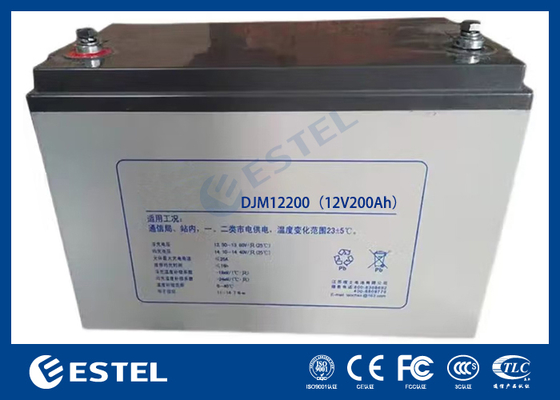

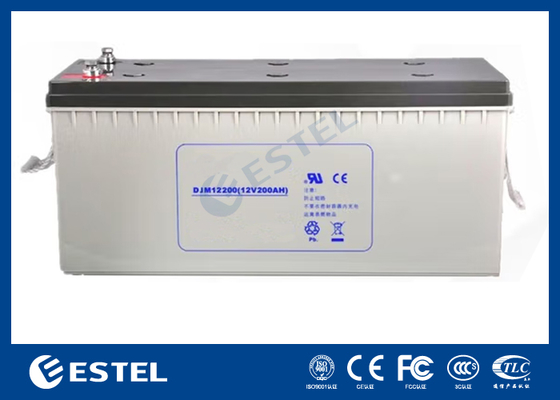

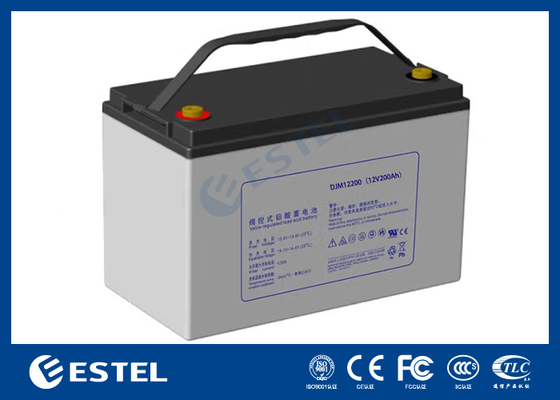

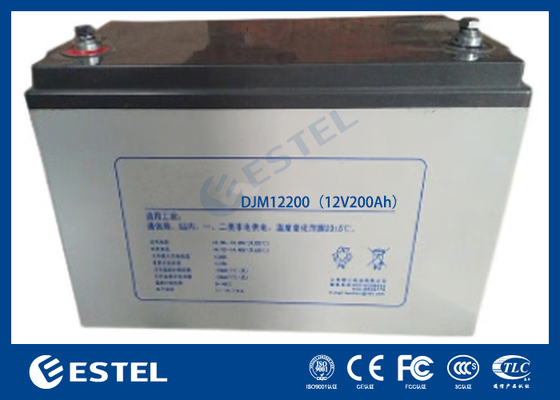

Büyük resim :  ESTEL DJM12200 12V 200Ah High Capacity Lead Acid Battery Industrial Grade Power Solution for Telecom and Energy Storage Systems

Ürün ayrıntıları:
Place of Origin: China
Marka adı: ESTEL
Sertifika: ISO9001, CE, 3C, FCC, TLC
Model Number: DJM12200
Ödeme & teslimat koşulları:
Minimum Order Quantity: 100000
Fiyat: 30-120
Packaging Details: carton packing
Payment Terms: T/T
Supply Ability: 100000
İletişim
Detaylı ürün tanımı
Model: DJM12200 Nominal Voltage: 12V
Capacity (C10): 200Ah @1.80V/cell Dimensions (L×W×H): 522×240×218mm (20.6×9.45×8.58 inch)
Total Height (with terminals): 224mm (8.82 inch) Weight: 59.8kg (131.9 lbs)
Terminal Type: M8 Case Material: ABS





ESTEL DJM12200 12V 200Ah High Capacity Lead Acid Battery Industrial Grade Power Solution for Telecom and Energy Storage Systems





Overview



The ESTEL DJM12200 is a premium 12V 200Ah lead-acid battery designed for industrial and commercial applications requiring high-capacity, reliable power. With its robust ABS construction and advanced venting technology, this battery delivers exceptional performance across a wide temperature range while maintaining a 12-year float service life at 25°C. Ideal for telecom infrastructure, large-scale UPS systems, and renewable energy storage, the DJM12200 combines massive 2000A surge capacity with industry-leading certifications including UL and CE.





Key Features



  • Massive Capacity: 200Ah @ C10 rate (20A discharge)
  • Extreme Power Output: 2000A peak current (5-second duration)
  • Extended Service Life: 12-year design float life at optimal temperatures
  • Temperature Resilient: Operates from -20°C to 55°C (-4°F to 131°F)
  • Rapid Recharge: Accepts up to 60A charging current
  • Low Internal Resistance: Just 3.2mΩ for efficient power delivery





Technical Specifications



Core Parameters

Specification Value
Model DJM12200
Nominal Voltage 12V
Capacity (C10) 200Ah @1.80V/cell
Dimensions (LxWxH) 522x240x218mm(20.6x9.45x8.58 in)
Total Height (with terminals) 224mm (8.82 in)
Weight 59.8kg (131.9 lbs)
Terminal Type M8
Case Material ABS

Capacity Performance (25°C)

Discharge Rate Capacity Current
C20 208Ah 10.4A
C10 200Ah 20.0A
C5 172Ah 34.4A
C1 122Ah 122.0A

Electrical Characteristics

  • Max Discharge Current: 2000A (5s pulse)
  • Internal Resistance: 3.2mΩ @25°C
  • Self Discharge: ≤3% per month @25°C

Charging Parameters

  • Max Charge Current: 60A @25°C
  • Float Voltage: 2.23-2.27V/cell
  • Equalization Voltage: 2.35-2.40V/cell
  • Cycle Voltage: 2.40-2.50V/cell

Performance Data (25°C)

Constant Current Discharge (Amperes)

Voltage 10min 30min 1h 3h 5h 10h 20h
1.85V/cell 278.4 154.8 94.3 46.2 31.3 18.9 10.3
1.80V/cell 343.9 179.5 105.6 50.6 33.6 20.0 10.4
1.60V/cell 476.4 216.0 122.0 57.5 37.3 21.0 10.9

Constant Power Discharge (Watts)

Voltage 10min 30min 1h 3h 5h 10h 20h
1.85V/cell 514.3 295.0 181.9 90.1 61.3 37.4 20.4
1.80V/cell 627.7 336.9 202.6 98.1 65.5 39.5 20.6





Applications



  • Telecom Infrastructure: Cell towers, transmission equipment
  • Data Center Power: Large-scale UPS backup systems
  • Renewable Energy: Solar/Wind energy storage banks
  • Industrial Equipment: Heavy machinery power supply
  • Emergency Systems: Hospital backup, security networks





Certifications & Standards



  • Safety Certifications: UL, TLC, CE
  • Performance Standards: IEC 60896, GB/T19638, YD/T 799, DL/T 637
  • Manufacturing Certifications: IATF 16949, ISO 9001, ISO 14001, ISO 45001





Why Choose ESTEL DJM12200?



  1. Industrial-Grade Construction: Heavy-duty ABS case withstands harsh environments
  2. High Energy Density: Compact footprint for 200Ah capacity
  3. Maintenance-Free Design: Sealed construction prevents acid leakage
  4. Deep Cycle Capable: Withstands repeated discharge/recharge cycles
  5. Global Compliance: Meets international safety and performance standards
